db_engine.h File Reference

#include <common/xroad_xml.h>

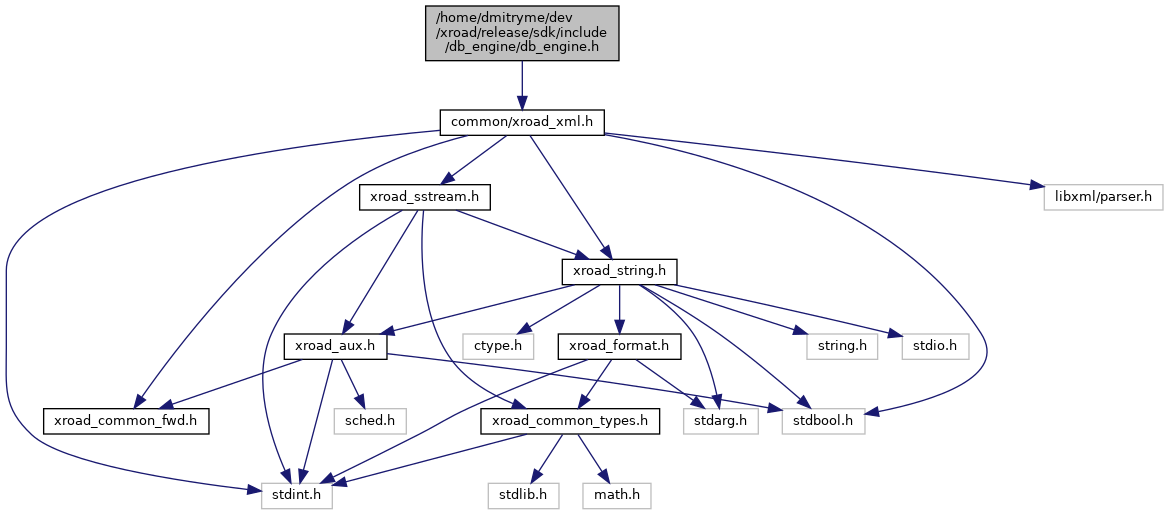

Include dependency graph for db_engine.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	db_notification_t
struct	db_query_stat_t
struct	db_result_callback_t
struct	db_callback_t

Typedefs
typedef struct db_engine_s	db_engine_t

Enumerations
enum	db_type_t { db_mysql = 1 , db_pgsql = 2 }

Functions
db_engine_t *	db_engine_create (xroad_xml_tag_t cfg, db_callback_t cb)
db_engine_t *	db_engine_create_ex (xroad_str_t uri, xroad_str_t encoding, bool async, db_callback_t cb)
void	db_engine_destroy (db_engine_t *e)
xroad_errno_t	db_engine_start (db_engine_t *e)
void	db_engine_stop (db_engine_t *e)
xroad_errno_t	db_engine_send (db_engine_t *e, xroad_str_t q)
xroad_errno_t	db_engine_query (db_engine_t *e, xroad_str_t q, db_result_callback_t cb)
xroad_errno_t	db_engine_query_bypass (db_engine_t *e, xroad_str_t q, db_result_callback_t cb)
xroad_errno_t	db_engine_query_ex (db_engine_t *e, xroad_str_t q, bool queue_bypass, db_result_callback_t cb)
xroad_errno_t	db_engine_subscribe (db_engine_t *e, xroad_str_t q, db_notification_t cb)
xroad_errno_t	db_engine_unsubscribe (db_engine_t *e, xroad_str_t q, db_notification_t cb)
db_type_t	db_engine_get_type (db_engine_t *e)
bool	db_engine_is_busy (db_engine_t *e)
uint32_t	db_engine_get_queue_size (db_engine_t *e)

Detailed Description

Author

Danil Krivopustov, krivo.nosp@m.pust.nosp@m.ovda@.nosp@m.gmai.nosp@m.l.com

Function Documentation

db_engine_create()

db_engine_t* db_engine_create	(	xroad_xml_tag_t	cfg,
		db_callback_t	cb
	)

creates new db_engine instance

Parameters

[in]

cfg

- db_engine config

Returns

pointer to new instance, NULL - error

db_engine_create_ex()

db_engine_t* db_engine_create_ex	(	xroad_str_t	uri,
		xroad_str_t	encoding,
		bool	async,
		db_callback_t	cb
	)

creates new db_engine instance

Parameters

[in]

cfg

- db_engine config

Returns

pointer to new instance, NULL - error

db_engine_destroy()

void db_engine_destroy

(

db_engine_t *

e

)

destroys db_engine instance

Parameters

[in]

e

- pointer to db_engine

db_engine_get_queue_size()

uint32_t db_engine_get_queue_size

(

db_engine_t *

e

)

returns queue_size

Returns

queue size

db_engine_get_type()

db_type_t db_engine_get_type

(

db_engine_t *

e

)

returns db type

Returns

type of underlying connection

db_engine_is_busy()

bool db_engine_is_busy

(

db_engine_t *

e

)

returns is_busy

Returns

is busy

db_engine_query()

xroad_errno_t db_engine_query	(	db_engine_t *	e,
		xroad_str_t	q,
		db_result_callback_t	cb
	)

sends query to database

Parameters

[in]	e	- pointer to db_engine_send
[in]	q	- query string

Returns

XROAD_OK if success, otherwise XROAD_FAILED

db_engine_query_bypass()

xroad_errno_t db_engine_query_bypass	(	db_engine_t *	e,
		xroad_str_t	q,
		db_result_callback_t	cb
	)

sends query to database bypassing the queue

Parameters

[in]	e	- pointer to db_engine_send
[in]	q	- query string

Returns

XROAD_OK if success, otherwise XROAD_FAILED

db_engine_query_ex()

xroad_errno_t db_engine_query_ex	(	db_engine_t *	e,
		xroad_str_t	q,
		bool	queue_bypass,
		db_result_callback_t	cb
	)

sends query to database

Parameters

[in]	e	- pointer to db_engine_send
[in]	q	- query string
[in]	queue_bypass	- bypassing the queue

Returns

XROAD_OK if success, otherwise XROAD_FAILED

db_engine_send()

xroad_errno_t db_engine_send	(	db_engine_t *	e,
		xroad_str_t	q
	)

sends query to database

Parameters

[in]	e	- pointer to db_engine_send
[in]	q	- query string

Returns

XROAD_OK if success, otherwise XROAD_FAILED

db_engine_start()

xroad_errno_t db_engine_start

(

db_engine_t *

e

)

connects db_engine to database

Parameters

[in]

e

- pointer to db_engine

Returns

XROAD_OK if success, otherwise XROAD_FAILED

db_engine_stop()

void db_engine_stop

(

db_engine_t *

e

)

disconnects db_engine from database

Parameters

[in]

e

- pointer to db_engine

db_engine_subscribe()

xroad_errno_t db_engine_subscribe	(	db_engine_t *	e,
		xroad_str_t	q,
		db_notification_t	cb
	)

subscribes to notification on topic

Parameters

[in]	e	- pointer to db_engine_send
[in]	q	- topic
[in]	cb	- notification callback

Returns

XROAD_OK if success, otherwise XROAD_FAILED

db_engine_unsubscribe()

xroad_errno_t db_engine_unsubscribe	(	db_engine_t *	e,
		xroad_str_t	q,
		db_notification_t	cb
	)

unsubscribes from notification on topic

Parameters

[in]	e	- pointer to db_engine_send
[in]	q	- topic
[in]	cb	- notification callback

Returns

XROAD_OK if success, otherwise XROAD_FAILED
