#include <common/xroad_common_fwd.h>
#include <common/xroad_xml.h>
#include "xroad_storage_fwd.h"
#include "xroad_objects.h"

Include dependency graph for xroad_cache.h:

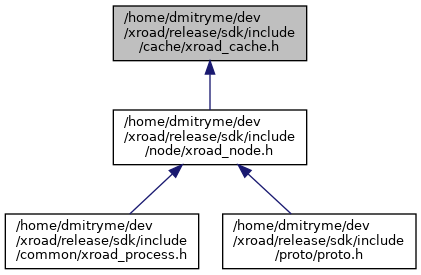

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	__xroad_cursor_dtor__ __dtor__(xroad_cursor_destructor)

Typedefs
typedef struct xroad_cache_s	xroad_cache_t

Functions
xroad_cache_t *	xroad_cache_open (xroad_str_t root_dir)

void	xroad_cache_destroy (xroad_cache_t *cache)

void *	xroad_cache_create_object (xroad_cache_t *cache, xroad_object_type_t type)

void *	xroad_cache_get_object (xroad_cache_t *cache, xroad_object_type_t type, xroad_object_id_t id)

void *	xroad_cache_clone_object (xroad_cache_t cache, const void obj)

void *	xroad_cache_copy_object (xroad_cache_t cache, const void obj, xroad_object_id_t id)

const xroad_storage_info_t *	xroad_cache_get_info (xroad_cache_t *cache, xroad_object_type_t type)

xroad_storage_stat_t	xroad_cache_get_stat (xroad_cache_t *cache, xroad_object_type_t type)

xroad_cursor_t *	xroad_cache_create_cursor (xroad_cache_t *cache, xroad_object_type_t type)

void	xroad_cache_destroy_cursor (xroad_cursor_t *cursor)

void	xroad_cursor_destructor (xroad_cursor_t **cursor)

void *	xroad_cache_cursor_get_first (xroad_cursor_t *cursor)

void *	xroad_cache_cursor_get_last (xroad_cursor_t *cursor)

void *	xroad_cache_cursor_get_next (xroad_cursor_t *cursor)

void *	xroad_cache_cursor_get_prev (xroad_cursor_t *cursor)

void *	xroad_cache_cursor_offset (xroad_cursor_t *cursor, int64_t offset)

xroad_errno_t	xroad_cache_clear (xroad_cache_t *cache, xroad_object_type_t type, bool force)

storage_heap_ref_t	xroad_cache_heap_alloc (xroad_cache_t cache, xroad_object_type_t type, storage_heap_ref_t ref, const void data, uint32_t len)

xroad_errno_t	xroad_cache_heap_free (xroad_cache_t *cache, xroad_object_type_t type, storage_heap_ref_t ref)

storage_heap_data_t	xroad_cache_heap_get (xroad_cache_t *cache, xroad_object_type_t type, storage_heap_ref_t ref)

void	xroad_cache_check_fill (xroad_cache_t *cache, double fill_factor)

void	xroad_cache_check_storage_deadlock (xroad_cache_t *cache)

xroad_errno_t	xroad_cache_check_object_deadlocks_by_type (xroad_cache_t *cache, xroad_object_type_t type)

xroad_errno_t	xroad_cache_check_object_deadlocks_by_pid (xroad_cache_t *cache)

void *	xroad_cache_lock_object (xroad_cache_t cache, void obj)

void	xroad_cache_unlock_object (xroad_cache_t cache, void obj)

Macro Definition Documentation

◆ __xroad_cursor_dtor__

#define __xroad_cursor_dtor__ __dtor__(xroad_cursor_destructor)

node automatic destructor

Function Documentation

◆ xroad_cache_check_fill()

void xroad_cache_check_fill	(	xroad_cache_t *	cache,
		double	fill_factor
	)

check storages for filling. And if fill factor exceeded, new pages added

Parameters

[in]	cache	- cache to check
[in]	fill_factor	- fill factor in percent

◆ xroad_cache_check_object_deadlocks_by_pid()

xroad_errno_t xroad_cache_check_object_deadlocks_by_pid ( xroad_cache_t * cache )

check object cache for locks by pid using lock_by_pid table

Parameters

[in] cache - cache to check

Returns: XROAD_OK - no deadlock detected, XROAD_ERROR_CHECK_FAILED - deadlock detected

◆ xroad_cache_check_object_deadlocks_by_type()

xroad_errno_t xroad_cache_check_object_deadlocks_by_type	(	xroad_cache_t *	cache,
		xroad_object_type_t	type
	)

check object cache for locks by type

Parameters

[in]	cache	- cache to check
[in]	type	- object type to check

Returns: check result

◆ xroad_cache_check_storage_deadlock()

void xroad_cache_check_storage_deadlock ( xroad_cache_t * cache )

check cache storages for deadlocks

Parameters

[in] cache - cache pointer

◆ xroad_cache_clear()

xroad_errno_t xroad_cache_clear	(	xroad_cache_t *	cache,
		xroad_object_type_t	type,
		bool	force
	)

clear storage

Parameters

[in]	cache	- cache instance
[in]	type	- storage type
[in]	force	- force clear

Returns: XROAD_OK - cleared, else failed

◆ xroad_cache_clone_object()

void* xroad_cache_clone_object	(	xroad_cache_t *	cache,
		const void *	obj
	)

clone object in cache

Parameters

[in]	cache	- cache instance
[in]	obj	- obejct to clone

Returns: cloned object

◆ xroad_cache_copy_object()

void* xroad_cache_copy_object	(	xroad_cache_t *	cache,
		const void *	obj,
		xroad_object_id_t	id
	)

copy object in cache

Parameters

[in]	cache	- cache instance
[in]	obj	- object to copy
[in]	id	- id of source object

Returns: copied object, else NULL in case of error

◆ xroad_cache_create_cursor()

xroad_cursor_t* xroad_cache_create_cursor	(	xroad_cache_t *	cache,
		xroad_object_type_t	type
	)

create cache cursor. cusrsor MUST be destroed after usage

Parameters

[in]	cache	- cache instance
[in]	type	- storage type

Returns: cursor

◆ xroad_cache_create_object()

void* xroad_cache_create_object	(	xroad_cache_t *	cache,
		xroad_object_type_t	type
	)

create object in cache

Parameters

[in]	cache	- cache instance
[in]	type	- type og object to create

Returns: created object, else NULL

◆ xroad_cache_cursor_get_first()

void* xroad_cache_cursor_get_first ( xroad_cursor_t * cursor )

get first object by cursor

Parameters

[in] cursor - cursor instance

Returns: object, if any

◆ xroad_cache_cursor_get_last()

void* xroad_cache_cursor_get_last ( xroad_cursor_t * cursor )

get last object by cursor

Parameters

[in] cursor - cursor instance

Returns: object, if any

◆ xroad_cache_cursor_get_next()

void* xroad_cache_cursor_get_next ( xroad_cursor_t * cursor )

get next object by cursor

Parameters

[in] cursor - cursor instance

Returns: object, if any

◆ xroad_cache_cursor_get_prev()

void* xroad_cache_cursor_get_prev ( xroad_cursor_t * cursor )

get previous object by cursor

Parameters

[in] cursor - cursor instance

Returns: object, if any

◆ xroad_cache_cursor_offset()

void* xroad_cache_cursor_offset	(	xroad_cursor_t *	cursor,
		int64_t	offset
	)

offset cursor by number of rows

Parameters

[in] offset - cursor offset value. Can be negative

Returns: row, NULL - cursor reached end, begin of storage or storage of empty or something goes wrong

◆ xroad_cache_destroy()

void xroad_cache_destroy ( xroad_cache_t * cache )

close all opened storages and destroy cache instance

Parameters

[in] cache - instance of cache to destroy

◆ xroad_cache_destroy_cursor()

void xroad_cache_destroy_cursor ( xroad_cursor_t * cursor )

destroy cursor

Parameters

[in] cursor - cursor to destroy

◆ xroad_cache_get_info()

const xroad_storage_info_t* xroad_cache_get_info	(	xroad_cache_t *	cache,
		xroad_object_type_t	type
	)

returns cache storage meta

Parameters

[in]	cache	- cache instance
[in]	type	- storage type

Returns: storage meta

◆ xroad_cache_get_object()

void* xroad_cache_get_object	(	xroad_cache_t *	cache,
		xroad_object_type_t	type,
		xroad_object_id_t	id
	)

gets object by ID

Parameters

[in]	cache	- cache instance
[in]	type	- object type
[in]	id	- object id

Returns: object, if found, else NULL

◆ xroad_cache_get_stat()

xroad_storage_stat_t xroad_cache_get_stat	(	xroad_cache_t *	cache,
		xroad_object_type_t	type
	)

returns cache storage statistic

Parameters

[in]	cache	- cache instance
[in]	type	- storage type

Returns: storage meta

◆ xroad_cache_heap_alloc()

storage_heap_ref_t xroad_cache_heap_alloc	(	xroad_cache_t *	cache,
		xroad_object_type_t	type,
		storage_heap_ref_t	ref,
		const void *	data,
		uint32_t	len
	)

save data in storage heap

Parameters

[in]	cache	- cache instance
[in]	type	- object type
[in]	ref	- reference to already allocated data. It will be reallocated
[in]	data	- data to save
[in]	len	- data length

Returns: reference to allocated data

◆ xroad_cache_heap_free()

xroad_errno_t xroad_cache_heap_free	(	xroad_cache_t *	cache,
		xroad_object_type_t	type,
		storage_heap_ref_t	ref
	)

free allocated data

Parameters

[in]	cache	- cache instance
[in]	type	- object type
[in]	ref	- reference to freed data

Returns: XROAD_OK, else failed

◆ xroad_cache_heap_get()

storage_heap_data_t xroad_cache_heap_get	(	xroad_cache_t *	cache,
		xroad_object_type_t	type,
		storage_heap_ref_t	ref
	)

get saved data with reference in heap

Parameters

[in]	cache	- cache instance
[in]	type	- object type
[in]	ref	- reference to data in heap

Returns: saved data pointer

◆ xroad_cache_lock_object()

void* xroad_cache_lock_object	(	xroad_cache_t *	cache,
		void *	obj
	)

lock object

Parameters

[in]	cache	- cache pointer
[in]	obj	- object to lock
	lock	pointer, NULL - failed

◆ xroad_cache_open()

xroad_cache_t* xroad_cache_open ( xroad_str_t root_dir )

open cache

Parameters

[in] root_dir - system root directory

Returns: cache instance

◆ xroad_cache_unlock_object()

void xroad_cache_unlock_object	(	xroad_cache_t *	cache,
		void *	obj
	)

unlock object

Parameters

[in]	cache	- cache pointer
[in]	obj	- object to unlock
