xroad_hashmap.h File Reference

#include "xroad_common_fwd.h"
#include "xroad_common_types.h"
#include "xroad_aux.h"
#include <stdlib.h>
#include <stddef.h>
#include <stdalign.h>

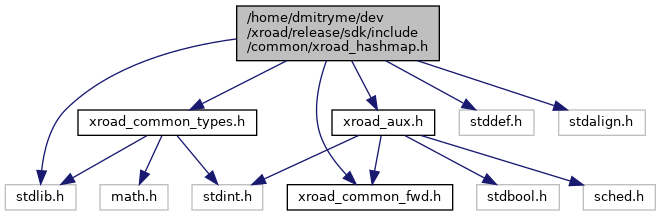

Include dependency graph for xroad_hashmap.h:

Go to the source code of this file.

Classes
struct	xroad_hashmap_va_args_t
struct	xroad_hashmap_insert_result_t

Macros
#define	XROAD_HASHMAP_ENTRY_STRUCT(key_type, value_type)   struct { int8_t info; key_type key; value_type value; int8_t last_member; }
#define	XROAD_HASHMAP_ENTRY_KEY_OFFSET(key_type, value_type)   offsetof(XROAD_HASHMAP_ENTRY_STRUCT(key_type, value_type), key)
#define	XROAD_HASHMAP_ENTRY_VALUE_OFFSET(key_type, value_type)   offsetof(XROAD_HASHMAP_ENTRY_STRUCT(key_type, value_type), value)
#define	XROAD_HASHMAP_ENTRY_SIZE(key_type, value_type)   offsetof(XROAD_HASHMAP_ENTRY_STRUCT(key_type, value_type), last_member)
#define	xroad_hashmap_create(key_type, value_type, ...)
#define	__xroad_hashmap_dtor__   __dtor__(xroad_hashmap_destructor)

Typedefs
typedef uint32_t(*	xroad_hashmap_hash_func_t) (const void *, uint32_t)
typedef int32_t(*	xroad_hashmap_equal_func_t) (const void *, const void *, uint32_t)
typedef void(*	xroad_hashmap_free_func_t) (void *)

Functions
uint32_t	xroad_hashmap_hash_func_cstr (const void *, uint32_t)
int32_t	xroad_hashmap_equal_func_cstr (const void *, const void *, uint32_t)
void	xroad_hashmap_free_func_cstr (void *)
uint32_t	xroad_hashmap_hash_func_xroad_str (const void *, uint32_t)
int32_t	xroad_hashmap_equal_func_xroad_str (const void *, const void *, uint32_t)
void	xroad_hashmap_free_func_xroad_str (void *)
xroad_hashmap_t *	xroad_hashmap_create_ex (uint32_t sizeof_key, uint32_t sizeof_value, uint32_t sizeof_entry, uint32_t key_offset, uint32_t value_offset, uint32_t initiad_size, xroad_hashmap_hash_func_t hash_func, xroad_hashmap_equal_func_t equal_func, xroad_hashmap_free_func_t key_free_func, xroad_hashmap_free_func_t value_free_func, xroad_mem_pool_t *pool)
void	xroad_hashmap_destroy (xroad_hashmap_t *hashmap)
void	xroad_hashmap_destructor (void *hashmap_ptr)
void	xroad_hashmap_reserve (xroad_hashmap_t *hashmap, uint32_t size)
xroad_hashmap_insert_result_t	xroad_hashmap_insert (xroad_hashmap_t *hashmap, const void *key, const void *value)
xroad_hashmap_entry_t *	xroad_hashmap_find (xroad_hashmap_t *hashmap, const void *key)
void	xroad_hashmap_clear (xroad_hashmap_t *hashmap)
uint32_t	xroad_hashmap_get_key_size (const xroad_hashmap_t *hashmap)
uint32_t	xroad_hashmap_get_value_size (const xroad_hashmap_t *hashmap)
xroad_errno_t	xroad_hashmap_delete (xroad_hashmap_t *hashmap, const void *key, bool free_resources)
uint32_t	xroad_hashmap_get_size (xroad_hashmap_t *hashmap)
xroad_list_t *	xroad_hashmap_keys_to_list (xroad_hashmap_t *hashmap)
xroad_list_t *	xroad_hashmap_values_to_list (xroad_hashmap_t *hashmap)
void *	xroad_hashmap_entry_get_key (xroad_hashmap_t *hashmap, xroad_hashmap_entry_t *entry)
void *	xroad_hashmap_entry_get_value (xroad_hashmap_t *hashmap, xroad_hashmap_entry_t *entry)
void	xroad_hashmap_entry_set_value (xroad_hashmap_t *hashmap, xroad_hashmap_entry_t *entry, const void *value, bool free_resources)
void	xroad_hashmap_entry_delete (xroad_hashmap_t *hashmap, xroad_hashmap_entry_t *entry, bool free_resources)
xroad_hashmap_entry_t *	xroad_hashmap_entry_delete_and_get_next (xroad_hashmap_t *hashmap, xroad_hashmap_entry_t *entry, bool free_resources)
xroad_hashmap_entry_t *	xroad_hashmap_get_first (xroad_hashmap_t *hashmap)
xroad_hashmap_entry_t *	xroad_hashmap_entry_get_next (xroad_hashmap_t *hashmap, xroad_hashmap_entry_t *entry)

Detailed Description

Author

Stepan Demidov, minec.nosp@m.raft.nosp@m.er925.nosp@m.@yan.nosp@m.dex.r.nosp@m.u

Macro Definition Documentation

xroad_hashmap_create

#define xroad_hashmap_create	(		key_type,
			value_type,
			...
	)

Value:

({                                                                                 \
   xroad_hashmap_va_args_t args = {__VA_ARGS__};                                   \
   xroad_hashmap_create_ex(sizeof(key_type), sizeof(value_type),                   \
                           XROAD_HASHMAP_ENTRY_SIZE(key_type, value_type),         \
                           XROAD_HASHMAP_ENTRY_KEY_OFFSET(key_type, value_type),   \
                           XROAD_HASHMAP_ENTRY_VALUE_OFFSET(key_type, value_type), \
                           args.initial_size, args.hash, args.equal,               \
                           args.key_dtor, args.value_dtor, args.pool);             \
})

XROAD_HASHMAP_ENTRY_STRUCT

#define XROAD_HASHMAP_ENTRY_STRUCT	(		key_type,
			value_type
	)		struct { int8_t info; key_type key; value_type value; int8_t last_member; }

sizeof(struct { ... }) isn't valid expression in C++, so we use offsetof(struct { ... }, last_member) instead as a workaround

Typedef Documentation

xroad_hashmap_equal_func_t

typedef int32_t(* xroad_hashmap_equal_func_t) (const void *, const void *, uint32_t)

equal function type

xroad_hashmap_free_func_t

typedef void(* xroad_hashmap_free_func_t) (void *)

free function type

xroad_hashmap_hash_func_t

typedef uint32_t(* xroad_hashmap_hash_func_t) (const void *, uint32_t)

hash function type

Function Documentation

xroad_hashmap_clear()

void xroad_hashmap_clear

(

xroad_hashmap_t *

hashmap

)

delete all entries from hash table

Parameters

[in]

hashmap

- instance of hashmap

xroad_hashmap_create_ex()

xroad_hashmap_t* xroad_hashmap_create_ex	(	uint32_t	sizeof_key,
		uint32_t	sizeof_value,
		uint32_t	sizeof_entry,
		uint32_t	key_offset,
		uint32_t	value_offset,
		uint32_t	initiad_size,
		xroad_hashmap_hash_func_t	hash_func,
		xroad_hashmap_equal_func_t	equal_func,
		xroad_hashmap_free_func_t	key_free_func,
		xroad_hashmap_free_func_t	value_free_func,
		xroad_mem_pool_t *	pool
	)

create new hashmap

Parameters

[in]	sizeof_key	- sizeof key
[in]	sizeof_value	- sizeof value
[in]	key_offet	- alignof key
[in]	value_offset	- alignof value
[in]	initiad_size	- initial size of hashmap. Can be 0
[in]	max_load_factor	- max load factor. Can be 0, so max load factor = 0.5 will be used
[in]	hash_func	- hash function, if NULL - default function is used
[in]	equal_func	- equality function, used for entry search. if NULL - default function is used
[in]	key_free_func	- key destructor function. if NULL - no free function will be used
[in]	value_free_func	- value destructor function. if NULL - no free function will be used
[in]	pool	- memory pool if any. Can be NULL, so libc malloc/calloc will be used

Returns

pointer to new hashmap, NULL - error

xroad_hashmap_delete()

xroad_errno_t xroad_hashmap_delete	(	xroad_hashmap_t *	hashmap,
		const void *	key,
		bool	free_resources
	)

delete entry from hashmap

Parameters

[in]	hashmap	- instance of hashmap
[in]	key	- key to delete
[in]	free_resources	- if true free all allocated resources using key_dtor and value_dtor from hashmap constructor

Returns

XROAD_OK - found and deleted, XROAD_ERROR_NOT_FOUND - entry with key not found

xroad_hashmap_destroy()

void xroad_hashmap_destroy

(

xroad_hashmap_t *

hashmap

)

delete hashmap and free all resources

Parameters

[in]

hashmap

- hash table to delete. If hash is NULL, nothing happened

xroad_hashmap_entry_delete()

void xroad_hashmap_entry_delete	(	xroad_hashmap_t *	hashmap,
		xroad_hashmap_entry_t *	entry,
		bool	free_resources
	)

delete entry

Parameters

[in]	hashmap	- instance of hashmap
[in]	entry	- entry to delete
[in]	free_resources	- if true free all allocated resources using key_dtor and value_dtor from hashmap constructor

xroad_hashmap_entry_delete_and_get_next()

xroad_hashmap_entry_t* xroad_hashmap_entry_delete_and_get_next	(	xroad_hashmap_t *	hashmap,
		xroad_hashmap_entry_t *	entry,
		bool	free_resources
	)

delete entry and return next entry, NULL if there are no more

Parameters

[in]	hashmap	- instance of hashmap
[in]	entry	- entry to delete
[in]	free_resources	- if true free all allocated resources using key_dtor and value_dtor from hashmap constructor

Returns

next entry, NULL - no more entries

xroad_hashmap_entry_get_key()

void* xroad_hashmap_entry_get_key	(	xroad_hashmap_t *	hashmap,
		xroad_hashmap_entry_t *	entry
	)

return entry key

Parameters

[in]	hashmap	- instance of hashmap
[in]	entry	- entry to explore

Returns

entry key

xroad_hashmap_entry_get_next()

xroad_hashmap_entry_t* xroad_hashmap_entry_get_next	(	xroad_hashmap_t *	hashmap,
		xroad_hashmap_entry_t *	entry
	)

return next entry from hashmap

Parameters

[in]

entry

- entry

Returns

next entry, NULL - no more entries

xroad_hashmap_entry_get_value()

void* xroad_hashmap_entry_get_value	(	xroad_hashmap_t *	hashmap,
		xroad_hashmap_entry_t *	entry
	)

return entry value

Parameters

[in]	hashmap	- instance of hashmap
[in]	entry	- entry to explore

Returns

entry value

xroad_hashmap_entry_set_value()

void xroad_hashmap_entry_set_value	(	xroad_hashmap_t *	hashmap,
		xroad_hashmap_entry_t *	entry,
		const void *	value,
		bool	free_resources
	)

set entry value

Parameters

[in]	hashmap	- instance of hashmap
[in]	entry	- entry to set
[in]	value	- new value to set
[in]	free_resources	- if true free previously allocated resources using key_dtor and value_dtor from hashmap constructor

xroad_hashmap_find()

xroad_hashmap_entry_t* xroad_hashmap_find	(	xroad_hashmap_t *	hashmap,
		const void *	key
	)

find entry in hash table

Parameters

[in]	hashmap	- instance of hashmap
[in]	key	- key to find

Returns

entry or NULL if not found

xroad_hashmap_get_first()

xroad_hashmap_entry_t* xroad_hashmap_get_first

(

xroad_hashmap_t *

hashmap

)

return first entry from hashmap

Parameters

[in]

hashmap

- instance of hashmap

Returns

first entry, NULL - no entries

xroad_hashmap_get_key_size()

uint32_t xroad_hashmap_get_key_size

(

const xroad_hashmap_t *

hashmap

)

return entry key size

Parameters

[in]

hashmap

- instance of hashmap

Returns

entry key size

xroad_hashmap_get_size()

uint32_t xroad_hashmap_get_size

(

xroad_hashmap_t *

hashmap

)

return number of entries in hashmap

Parameters

[in]

hashmap

- instance of hashmap

Returns

number of entries in hashmap

xroad_hashmap_get_value_size()

uint32_t xroad_hashmap_get_value_size

(

const xroad_hashmap_t *

hashmap

)

return entry value size

Parameters

[in]

hashmap

- instance of hashmap

Returns

entry value size

xroad_hashmap_hash_func_cstr()

uint32_t xroad_hashmap_hash_func_cstr	(	const void *	,
		uint32_t
	)

default hashmap functions for cstr: -> xroad_hashmap_hash_func_cstr hashes strlen() bytes -> xroad_hashmap_equal_func_cstr use strcmp for compare -> xroad_hashmap_free_func_cstr use free() to free allocated memory

xroad_hashmap_hash_func_xroad_str()

uint32_t xroad_hashmap_hash_func_xroad_str	(	const void *	,
		uint32_t
	)

default hashmap functions for xroad_str: -> xroad_hashmap_hash_func_xroad_str hashes str.len bytes -> xroad_hashmap_equal_func_xroad_str use xroad_str_cmp for compare -> xroad_hashmap_free_func_xroad_str use free() to free allocated memory

xroad_hashmap_insert()

xroad_hashmap_insert_result_t xroad_hashmap_insert	(	xroad_hashmap_t *	hashmap,
		const void *	key,
		const void *	value
	)

insert new entry into hashmap

Parameters

[in]	hashmap	- instance of hashmap
[in]	key	- pointer to key data
[in]	value	- pointer to value data

Returns

result of insertion. entry - result of insertion or existing entry, errno - XROAD_OK - inserted, XROAD_ERROR_ALREADY_EXISTS - entry with the same key already exists

xroad_hashmap_keys_to_list()

xroad_list_t* xroad_hashmap_keys_to_list

(

xroad_hashmap_t *

hashmap

)

convert hashmap keys to list

Parameters

[in]

hashmap

- instance of hashmap to convert

Returns

new list structure

xroad_hashmap_reserve()

void xroad_hashmap_reserve	(	xroad_hashmap_t *	hashmap,
		uint32_t	size
	)

reserve space for size items

Parameters

[in]	hashmap	- instance of hashmap
[in]	size	- size

xroad_hashmap_values_to_list()

xroad_list_t* xroad_hashmap_values_to_list

(

xroad_hashmap_t *

hashmap

)

convert hashmap values to list

Parameters

[in]

hashmap

- instance of hashmap to convert

Returns

new list structure
