xroad_node.h File Reference

#include "xroad_system.h"
#include "xroad_node_types.h"
#include <cache/xroad_cache.h>
#include <cache/xroad_objects.h>
#include <cache/xroad_storage_fwd.h>
#include <common/xroad_xml.h>
#include <common/xroad_string.h>
#include <common/xroad_aux.h>
#include <stdint.h>
#include <stdbool.h>
#include <sys/epoll.h>

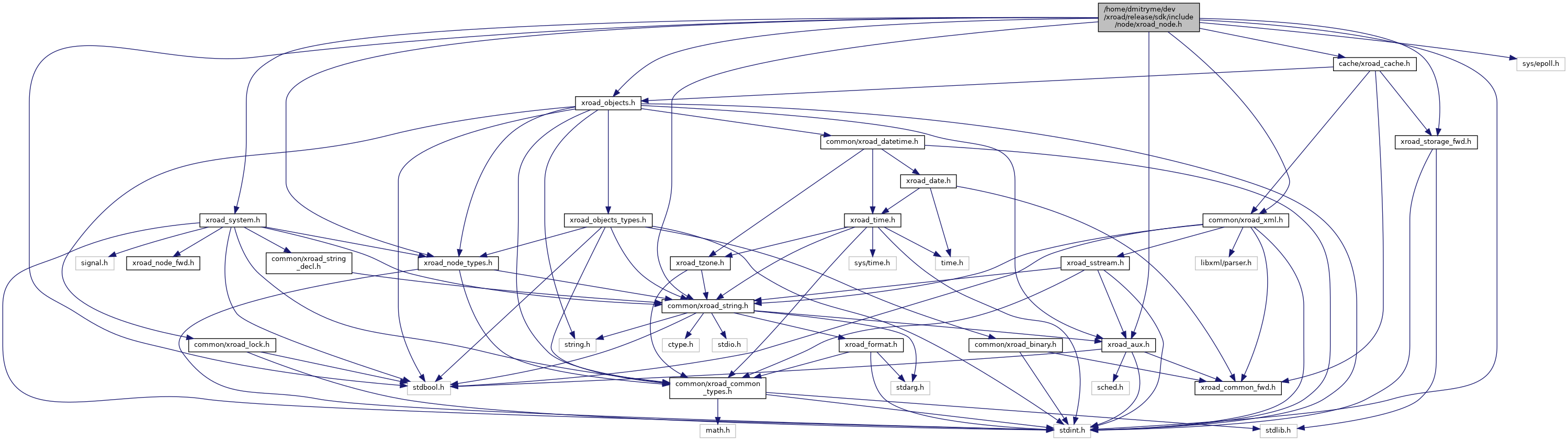

Include dependency graph for xroad_node.h:

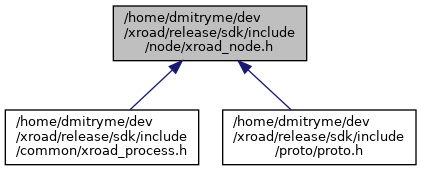

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	xroad_node_callback_t
struct	xroad_node_epoll_callback_t
struct	xroad_epoll_timestamps

Macros
#define	xroad_node_is_offline()
#define	xroad_node_find_object(type, fun, ...)

Functions
xroad_errno_t	xroad_node_create (xroad_str_t node_name, uint32_t major_version, uint32_t minor_version, xroad_str_t git_hash, xroad_node_callback_t callback)
void	xroad_node_destroy (void)
xroad_errno_t	xroad_node_reconfig (void)
xroad_xml_doc_t *	xroad_node_get_config (void)
const xroad_epoll_timestamps *	xroad_node_get_epoll_timestamps (void)
int32_t	xroad_node_receive (void)
int32_t	xroad_node_receive_ex (int32_t timeout)
xroad_errno_t	xroad_node_add_epoll (uint32_t events, xroad_node_epoll_callback_t *cback)
xroad_errno_t	xroad_node_mod_epoll (uint32_t events, xroad_node_epoll_callback_t *cback)
xroad_errno_t	xroad_node_del_epoll (xroad_node_epoll_callback_t *cback)
int32_t	xroad_node_get_epoll_fd (void)
void *	xroad_node_create_object (xroad_object_type_t type)
void *	xroad_node_clone_object (const void *obj)
xroad_errno_t	xroad_node_send_object (void *obj, xroad_node_id_t id)
xroad_errno_t	xroad_node_route_object (void *obj,...)
xroad_errno_t	xroad_node_route_object_va (void *obj, va_list ap)
void *	xroad_node_get_fun (xroad_str_t fname)
void *	xroad_node_get_object (xroad_object_type_t type, xroad_object_id_t id)
xroad_lock_by_pid_t *	xroad_node_get_used_lock (void)
xroad_node_data_t *	xroad_node_get_data (void)
void	xroad_node_reset_statistic (void)
xroad_str_t	xroad_node_get_working_dir (void)
void	xroad_node_set_flags (uint32_t flags)
int32_t	xroad_node_get_link_descriptor (void)
xroad_cursor_t *	xroad_node_create_cursor (xroad_object_type_t type)
void	xroad_node_destroy_cursor (xroad_cursor_t *cursor)
void *	xroad_node_cursor_get_next (xroad_cursor_t *cursor)
void *	xroad_node_cursor_get_prev (xroad_cursor_t *cursor)
void *	xroad_node_cursor_get_first (xroad_cursor_t *cursor)
void *	xroad_node_cursor_get_last (xroad_cursor_t *cursor)
void *	xroad_node_cursor_offset (xroad_cursor_t *cursor, int64_t offset)
xroad_errno_t	xroad_node_clear_cache (xroad_object_type_t type, bool force)
xroad_cache_t *	xroad_node_get_cache ()
size_t	xroad_node_get_object_count (xroad_object_type_t type)
const xroad_version_t *	xroad_node_get_version (void)
bool	xroad_node_is_initialized (void)
xroad_errno_t	xroad_node_subscribe (xroad_domain_t group, xroad_node_callback_t cback)
xroad_errno_t	xroad_node_unsubscribe (xroad_domain_t group, xroad_node_callback_t cback)
xroad_str_t	xroad_node_get_env_param (xroad_str_t param)
void	xroad_node_renamed ()

Detailed Description

Author

Dmitry S. Melnikov, dmitr.nosp@m.yme@.nosp@m.gmail.nosp@m..com

Macro Definition Documentation

xroad_node_find_object

#define xroad_node_find_object	(		type,
			fun,
			...
	)

Value:

({                                                                               \
   xroad_cursor_t* cur __xroad_cursor_dtor__ = xroad_node_create_cursor(type);   \
   void* obj = xroad_node_cursor_get_first(cur);                                 \
   while(obj)                                                                    \
   {                                                                             \
      if (fun(obj, __VA_ARGS__))                                                 \
      {                                                                          \
         break;                                                                  \
      }                                                                          \
      obj = xroad_node_cursor_get_next(cur);                                     \
   }                                                                             \
   obj;                                                                          \
})

find object using functor

Parameters

[in]	type	- object type
[in]	fun	- functor like bool fun(....) @oaram[in] ... - functor params

Returns

found object, NULL nothing found

xroad_node_is_offline

#define xroad_node_is_offline

(

)

Value:

   (xroad_node_get_data()->status == xroad_node_status_offline || \
    xroad_node_get_data()->status == xroad_node_status_sleep)

Function Documentation

xroad_node_add_epoll()

xroad_errno_t xroad_node_add_epoll	(	uint32_t	events,
		xroad_node_epoll_callback_t *	cback
	)

add descriptor to epoll

Parameters

[in]	events	- fd events
[in]	cback	- pointer to epoll callback

Returns

XROAD_ERROR_OK - done

xroad_node_clear_cache()

xroad_errno_t xroad_node_clear_cache	(	xroad_object_type_t	type,
		bool	force
	)

clear object cache

Parameters

[in]	type	- type of objects to clear
[in]	force	- force clear

Returns

XROAD_OK - cleared, else failed

xroad_node_clone_object()

void* xroad_node_clone_object

(

const void *

obj

)

clone object

Parameters

[in]

obj

- object to clone

Returns

cloned object

xroad_node_create()

xroad_errno_t xroad_node_create	(	xroad_str_t	node_name,
		uint32_t	major_version,
		uint32_t	minor_version,
		xroad_str_t	git_hash,
		xroad_node_callback_t	callback
	)

create new node and registers in system

Parameters

[in]	node_name	- name of new node. Can be NULL.
[in]	major_version	- marjor version. Override value from xroad_version.c
[in]	minor_version	- minor version. Override value from xroad_version.c
[in]	git_hash	- git hash. Override value from xroad_version.c
[in]	callback	- callback method for objects

Returns

XROAD_OK - created, XROAD_ERROR_ALREADY_EXISTS - node already created

xroad_node_create_cursor()

xroad_cursor_t* xroad_node_create_cursor

(

xroad_object_type_t

type

)

create new cache cursor

Parameters

[in]

type

- type of cursor

Returns

pointer to new cursor

xroad_node_create_object()

void* xroad_node_create_object

(

xroad_object_type_t

type

)

create new object

Parameters

[in]

type

- type of object to create

Returns

created object

xroad_node_cursor_get_first()

void* xroad_node_cursor_get_first

(

xroad_cursor_t *

cursor

)

return first object from cache

Parameters

[in]

cursor

- cache cursor

Returns

object from cache

xroad_node_cursor_get_last()

void* xroad_node_cursor_get_last

(

xroad_cursor_t *

cursor

)

return last object from cache

Parameters

[in]

cursor

- cache cursor

Returns

object from cache

xroad_node_cursor_get_next()

void* xroad_node_cursor_get_next

(

xroad_cursor_t *

cursor

)

return next object from cache

Parameters

[in]

cursor

- cache cursor

Returns

object from cache

xroad_node_cursor_get_prev()

void* xroad_node_cursor_get_prev

(

xroad_cursor_t *

cursor

)

return previous object from cache

Parameters

[in]

cursor

- cache cursor

Returns

object from cache

xroad_node_cursor_offset()

void* xroad_node_cursor_offset	(	xroad_cursor_t *	cursor,
		int64_t	offset
	)

offset cursor

Parameters

[in]	cursor	- cache cursor
[in]	offset	- offset value. Can be negative for offset back

Returns

object from cache, or NULL

xroad_node_del_epoll()

xroad_errno_t xroad_node_del_epoll

(

xroad_node_epoll_callback_t *

cback

)

remove descriptor from epoll

Parameters

[in]

cback

- callback to remove

Returns

XROAD_ERROR_OK - done

xroad_node_destroy()

void xroad_node_destroy

(

void

)

destroy node and free resources

xroad_node_destroy_cursor()

void xroad_node_destroy_cursor

(

xroad_cursor_t *

cursor

)

destroy cursor

Parameters

[in]

cursor

- cursor to destroy

xroad_node_get_cache()

xroad_cache_t* xroad_node_get_cache

(

)

returns pointer to cache

Returns

pointer to cache

xroad_node_get_config()

xroad_xml_doc_t* xroad_node_get_config

(

void

)

return pointer to configuration

Returns

pointer to configuration

xroad_node_get_data()

xroad_node_data_t* xroad_node_get_data

(

void

)

Returns

node system slot

xroad_node_get_env_param()

xroad_str_t xroad_node_get_env_param

(

xroad_str_t

param

)

get node environment parameter

Parameters

[in]

param

- paramenter name

Returns

environment paramenter value

xroad_node_get_epoll_fd()

int32_t xroad_node_get_epoll_fd

(

void

)

return epoll file descriptor

xroad_node_get_epoll_timestamps()

const xroad_epoll_timestamps* xroad_node_get_epoll_timestamps

(

void

)

Returns timestamps associated with epoll

Returns

pointer to timestamps

xroad_node_get_fun()

void* xroad_node_get_fun

(

xroad_str_t

fname

)

get function from dll by name

Parameters

[in]

fname

- name of function

Returns

pointer function

xroad_node_get_link_descriptor()

int32_t xroad_node_get_link_descriptor

(

void

)

return link descriptor. Can be used in epoll

Returns

link descriptor

xroad_node_get_object()

void* xroad_node_get_object	(	xroad_object_type_t	type,
		xroad_object_id_t	id
	)

return object from cache

Parameters

[in]	type	- type of object
[in]	id	- id of object

Returns

pointer of object of any

xroad_node_get_object_count()

size_t xroad_node_get_object_count

(

xroad_object_type_t

type

)

return count of objects of desired type

Parameters

[in]

type

- type of objects to count

Returns

count of objects

xroad_node_get_used_lock()

xroad_lock_by_pid_t* xroad_node_get_used_lock

(

void

)

Returns

lock used by node

xroad_node_get_version()

const xroad_version_t* xroad_node_get_version

(

void

)

return node version

Returns

node version

xroad_node_get_working_dir()

xroad_str_t xroad_node_get_working_dir

(

void

)

get node home dir

Returns

node home dir

xroad_node_is_initialized()

bool xroad_node_is_initialized

(

void

)

check if node already created

Returns

1 - node is initialized, 0 - not yet

xroad_node_mod_epoll()

xroad_errno_t xroad_node_mod_epoll	(	uint32_t	events,
		xroad_node_epoll_callback_t *	cback
	)

modify events of already added to epoll descriptor

Parameters

[in]	events	- new fd events
[in]	cback	- pointer to epoll callback

Returns

XROAD_ERROR_OK - done

xroad_node_receive()

int32_t xroad_node_receive

(

void

)

receive and dispatch events

Returns

>= 0 number of dispatched messages, < 0 - error happened

xroad_node_receive_ex()

int32_t xroad_node_receive_ex

(

int32_t

timeout

)

receive and dispatch events

Parameters

[in]

timeout

- wait usecs for received message

Returns

1 - message(s) dispatched, < 0 - error happened

xroad_node_reconfig()

xroad_errno_t xroad_node_reconfig

(

void

)

reconfigure node

Returns

XROAD_ERROR_OK - reconfiguration complete successfully

xroad_node_renamed()

void xroad_node_renamed

(

)

must be called when node is renamed

xroad_node_reset_statistic()

void xroad_node_reset_statistic

(

void

)

reset node statistic

xroad_node_route_object()

xroad_errno_t xroad_node_route_object	(	void *	obj,
			...
	)

route object

Parameters

[in]

obj

- object to send

Returns

XROAD_ERROR_OK - object was sent

xroad_node_route_object_va()

xroad_errno_t xroad_node_route_object_va	(	void *	obj,
		va_list	ap
	)

route object

Parameters

[in]	obj	- object to send
[in]	ap	- argument list

Returns

XROAD_ERROR_OK - object was sent

xroad_node_send_object()

xroad_errno_t xroad_node_send_object	(	void *	obj,
		xroad_node_id_t	id
	)

send object directly to node

Parameters

[in]	obj	- object to send
[in]	id	- id of destination node

Returns

XROAD_ERROR_OK - object was sent

xroad_node_set_flags()

void xroad_node_set_flags

(

uint32_t

flags

)

set node flags

Parameters

[in]

flags

- new node flags

xroad_node_subscribe()

xroad_errno_t xroad_node_subscribe	(	xroad_domain_t	group,
		xroad_node_callback_t	cback
	)

subscribe to objects of concrete group

Parameters

[in]	domain	- object domain to subscribe
[in]	cback	- callback

Returns

XROAD_OK, else failed

xroad_node_unsubscribe()

xroad_errno_t xroad_node_unsubscribe	(	xroad_domain_t	group,
		xroad_node_callback_t	cback
	)

unsubscribe from group objects

Parameters

[in]	domain	- object domain to usubscribe
[in]	cback	- callback

Returns

XROAD_OK, else failed
